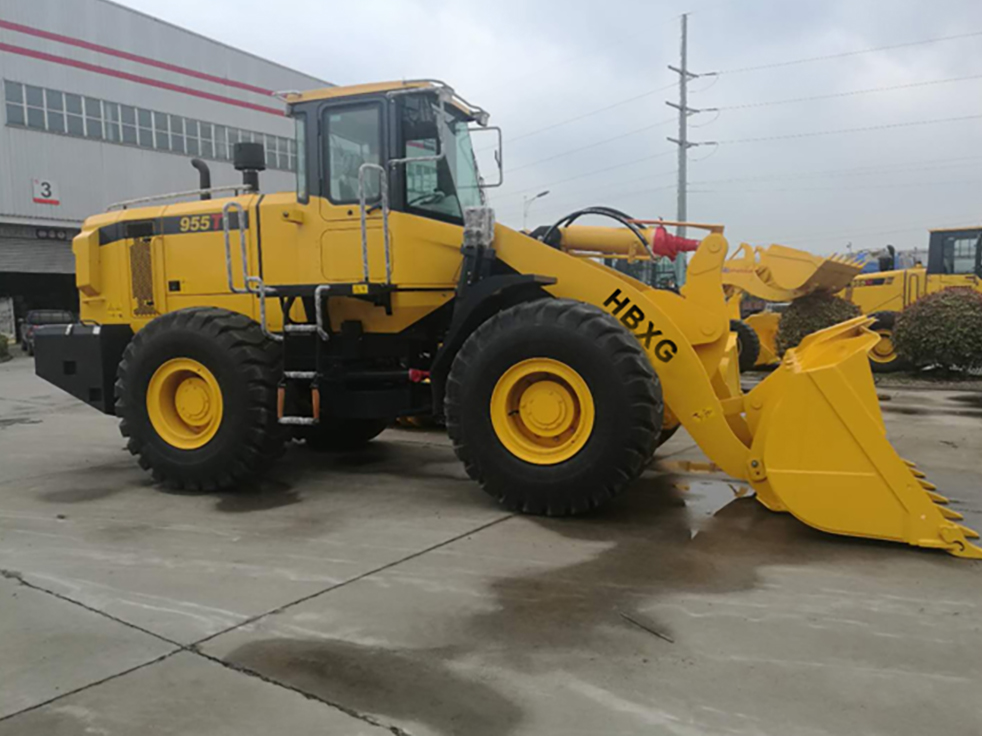

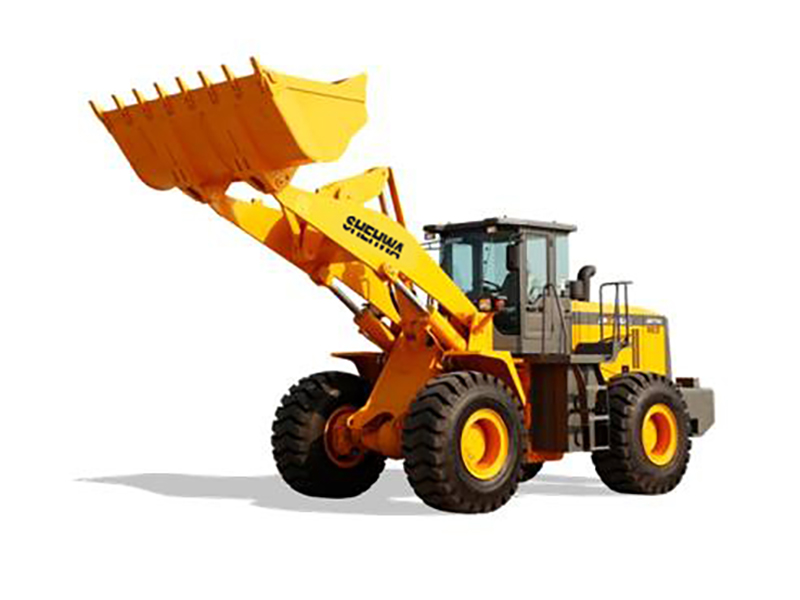

Wheel Loader XG955T
OVERALL DIMENSION
Length(with bucket on ground) |
8100(mm) |
Width(to outside of wheels) |
2800(mm) |
Bucket width |
2946(mm) |
Height(To the top of the cab) |
3450(mm) |
Wheel base |
3100(mm) |
Tread |
2200(mm) |
Min. ground clearance |
450(mm) |
MAIN TECHNICAL SPECIFICATION
Rated load |
5000(Kg) |
Operating weight |
16500(1±5%)KG |
Rated bucket capacity |
3m³ Optional 2.2-4.5 (m³) |
Max. breakout force |
165kN |
Max. dump clearance |
3140(mm) |
Dump reach |
1180(mm) |
Dump angle at any position |
≥45° |
Digging depth(with bucket bottom horizontal) |
27(mm) |
Min. turning radius | |
(1) Outside of bucket |
6689(mm) |
(2) Outside of rear wheel |
5970(mm) |
Pivot angle frame |
38° |
Oscillating angle of rear axle |
+11° |
Lifting time of bucket |
≤6.2(sec.) |
Lowering time of bucket |
≤3.8(sec.) |
Dumping time |
≤1.8(sec.) |
TRAVELING SPEED(KM/H)，2 FORWARD AND 1 REVERSE
Gear |
1st |
2nd |
Forward |
11.7 |
40.3 |
Backward |
15.9 |
|
DIESEL ENGINE
Model |
Weichai Engine WD10G220E23 |
Type |
Direct injection. Turbocharged. Water cooling |
Rated output |
162 kW |
Inter-bore of cylinder/Stroke |
126/130(mm) |
Total exhaust of cylinder |
9.726(L) |
Model of starting motor |
KB-24V |
Power of start motor |
7.5(KW) |
Voltage of starting motor |
24(V) |
Rated speed |
2000(r/min) |
Max. Torque |
>900(N.m) |
Starting type |
Electric |
Min. specific fuel consumption |
<220g/Kw.h) |
Engine specific oil consumption |
0.95-1.77(g/Kw.h) |
Net weight |
1000(Kg) |
TRANSMISSION SYSTEM
Hydromedia Transmission | |
Model |
ZL50B-012 |
Type |
4-elements.single stage |
Torque ratio |
4 |
Cooling type |
Pressure oil circulating |
Type of transmission case |
power shift, spur gear constant-mesh |
Gear shift position |
2 Forward and 1 reverse gears |
Axle and Tire | |
Type of main reducer |
spiral bevel gear, single stage |
Gear ratio of main reducer |
4.625 |
Type of final reducer |
Single stage planetary |
Gear of ratio of final reducer |
4.929 |
Gear ratio |
22.795 |
Max. drawing force |
150kN |
Size of tire |
23.5-25-16PR |
WORKING DEVICE HYDRAULIC SYSTEM
Model of oil pump |
JHP2080S |
System pressure |
18MPa |
Model of Mutichannel conversion valve |
GDF-32-YL18 |
(D*L)Dimension of lifting cylinder |
Ф160*90*810(mm) |
(D*L) Dimension of tilting cylinder |
Ф180*90*563(mm) |
STEERING SYSTEM
Type |
Middle articulated frame. Full-hydraulic Steering |
Model of steering pump |
JHP2080S |
Model of redirector |
TLF1-E1000B+FKB6020 |
Model of priority valve |
YXL-F250F-N7 |
System pressure |
16MPa |
Dimension of steering cylinder |
Ф90*400 (mm) |
BRAKE SYSTEM
| Type of traveling brake | Caliper disc brake |
| Air over oil activate 4 wheel brake | |
| Air pressure | 6-7.5(kgf/cm2) |
| Type of parking brake | Hand brake |
| Flexible shaft control clamp brake | |
OIL CAPACITY
| Fuel(diesel) | 250L |
| Engine lubricating oil | 24L |
| Oil for converter and gear box | 45L |
| Oil for hydraulic system | 180L |
| Oil for driving axles(F/R) | 36L |
| Oil for final reducer | 14L |
| Oil for brake system | 3L |
