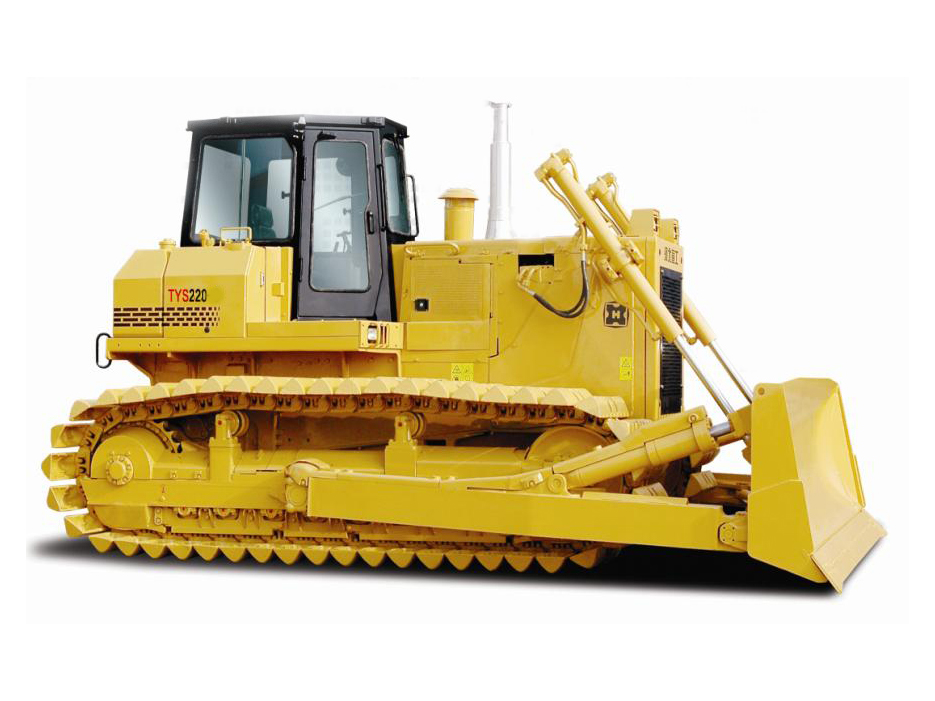

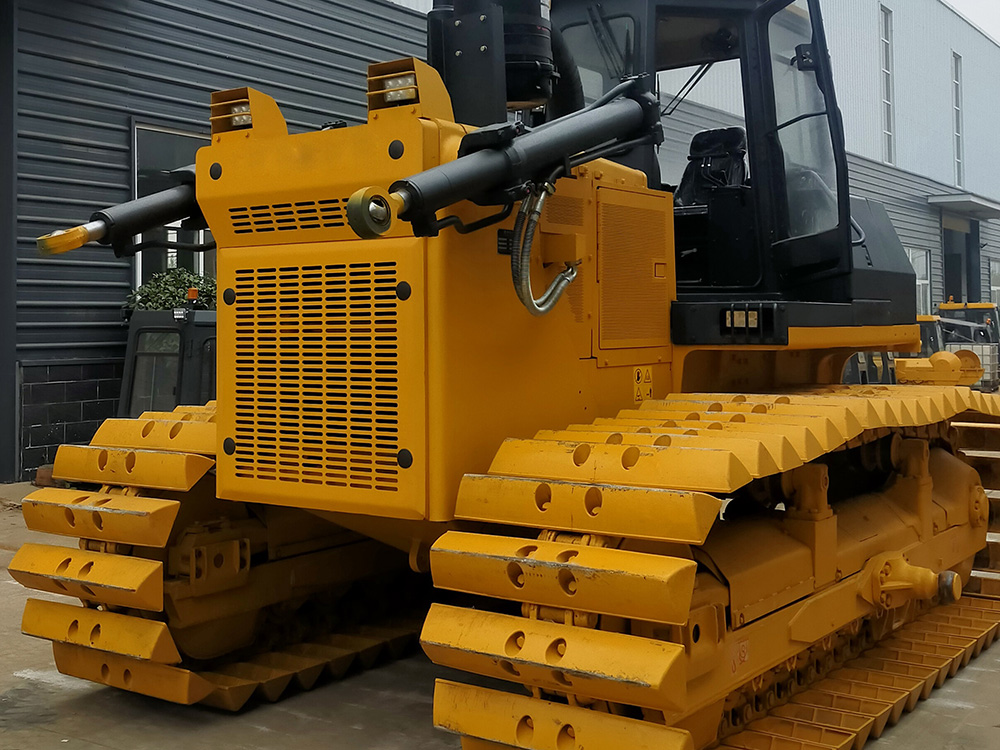

Normal Structure Swamp Bulldozer TYS220 (220HP)
Product Introduction
TYS220 bulldozer is semi-rigid suspended, hydraulic transfer, hydraulic controlled track type bulldozer. Planetary, power shift transmission which is Unilever operated. The operation system designed according to human and machine engineering makes operation more easily, efficiently and accurately. Strong power, excellent performances, high operation efficiency and wide view show the advantage features. It is your best choice for road building, hydro-electric construction, field modification, port building, mine development and other constructions.
SPECIFICATIONS
Dozer |
Straight-tilt |
(not including ripper) Operation weight (Kg) |
25700 |
Ground pressure(KPa) |
41 |
Track gauge(mm) |
2250 |
Gradient |
30° |
Dozing capacity (m³) |
6.8 |
Blade width (mm) |
4365 |
Max. digging depth (mm) |
550 |
Overall dimensions (mm) |
6290×4365×3395 |
ENGINE
Type |
CUMMINS NT855-C280S10 |
Rated revolution (rpm) |
2000 |
Rated power (KW) |
175 |
Max. torque (N•m/rpm) |
1030/1300 |
Rated fuel consumption(g/KW•h) |
205 |

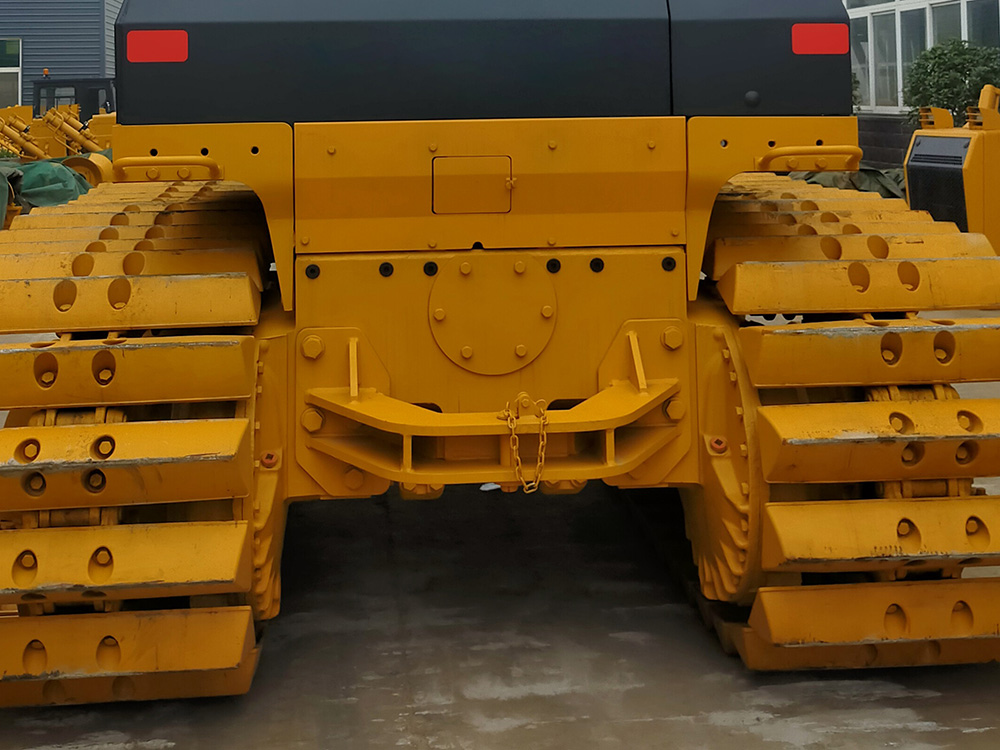

UNDERCARRIAGE SYSTEM
| Type | Swing type of sprayed beam. Suspended structure of equalizer bar |
| Number of track rollers (each side) | 7 |
| Number of carrier rollers (each side) | 2 |
| Pitch (mm | 203.2 |
| Width of shoe (mm) | 950 |
GEAR
Gear |
1st |
2nd |
3rd |
Forward (Km/h) |
0-3.6 |
0-6.5 |
0-11.2 |
Backward (Km/h) |
0-4.3 |
0-7.7 |
0-13.2 |
IMPLEMENT HYDRAULIC SYSTEM
Max. system pressure (MPa) |
14 |
Pump type |
Gears pump |
System output（L/min) |
262 |
DRIVING SYSTEM
Torque converter
3-element 1-stage 1-phase
Transmission
Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch.
Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control.
Steering brake
Wet type, floating band structure, foot brake with hydraulic booster.
Final drive
2-stage speed reduction of spur gear, splash lubrication.
BLADE
Blade type |
Straight-tilting blade |
Width of blade |
4365 mm |
Height of blade |
1287mm |
product description
Introducing the TYS220 Normal Structure Swamp Bulldozer – a powerhouse of efficiency and precision designed to tackle the toughest terrains with ease. Engineered for superior performance, the TYS220 bulldozer is a semi-rigid suspended, hydraulic transfer, hydraulic controlled track type machine that stands out in its class.
At the heart of the TYS220 is its robust 220HP engine, delivering the power needed to handle demanding tasks in swampy and challenging environments. The bulldozer features a planetary, power shift transmission that is Unilever operated, ensuring smooth and reliable power delivery. This advanced transmission system allows for seamless gear changes, enhancing the machine's operational efficiency and reducing downtime.

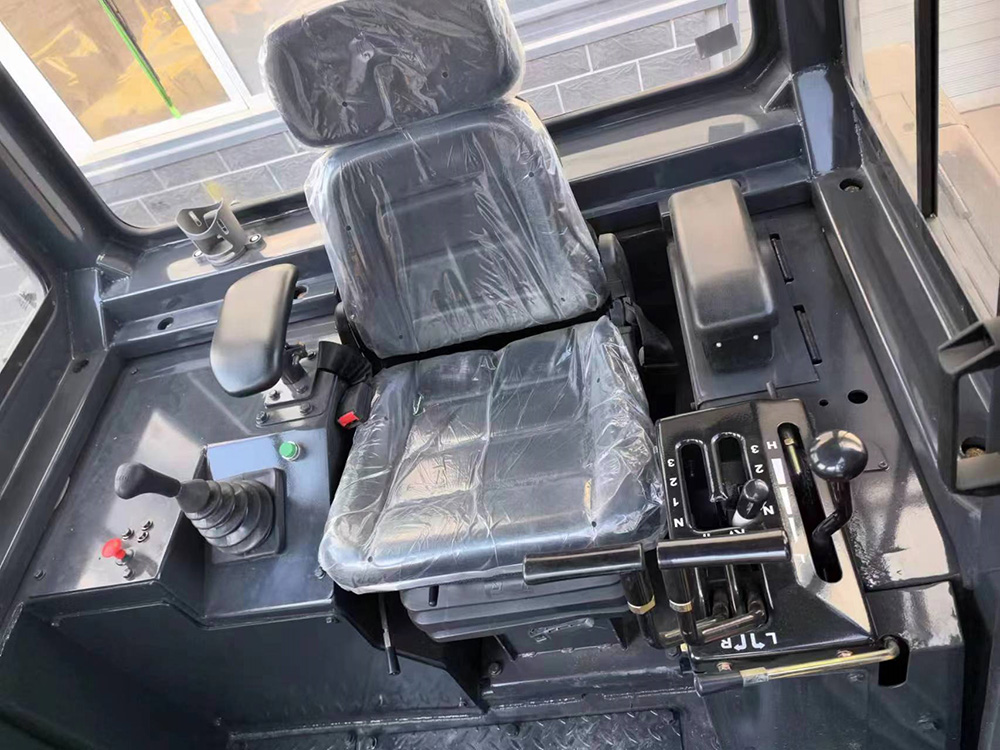

One of the standout features of the TYS220 is its operation system, meticulously designed according to human and machine engineering principles. This thoughtful design makes the operation of the bulldozer more intuitive, efficient, and accurate. Operators will appreciate the ease of use, which translates to increased productivity and reduced operator fatigue.
The semi-rigid suspension system of the TYS220 provides a perfect balance between stability and flexibility, allowing the bulldozer to navigate uneven and soft terrains with confidence. The hydraulic transfer and control systems further enhance the machine's responsiveness and precision, making it an ideal choice for projects that require meticulous grading and earthmoving.
In addition to its impressive technical specifications, the TYS220 Normal Structure Swamp Bulldozer is built with durability in mind. Its rugged construction ensures long-lasting performance, even in the harshest working conditions. Whether you're working in construction, mining, or land reclamation, the TYS220 is equipped to handle the job with unmatched reliability.
Experience the future of earthmoving with the TYS220 Normal Structure Swamp Bulldozer. Combining power, precision, and ease of operation, this bulldozer is the ultimate tool for professionals who demand the best. Invest in the TYS220 and elevate your productivity to new heights.
