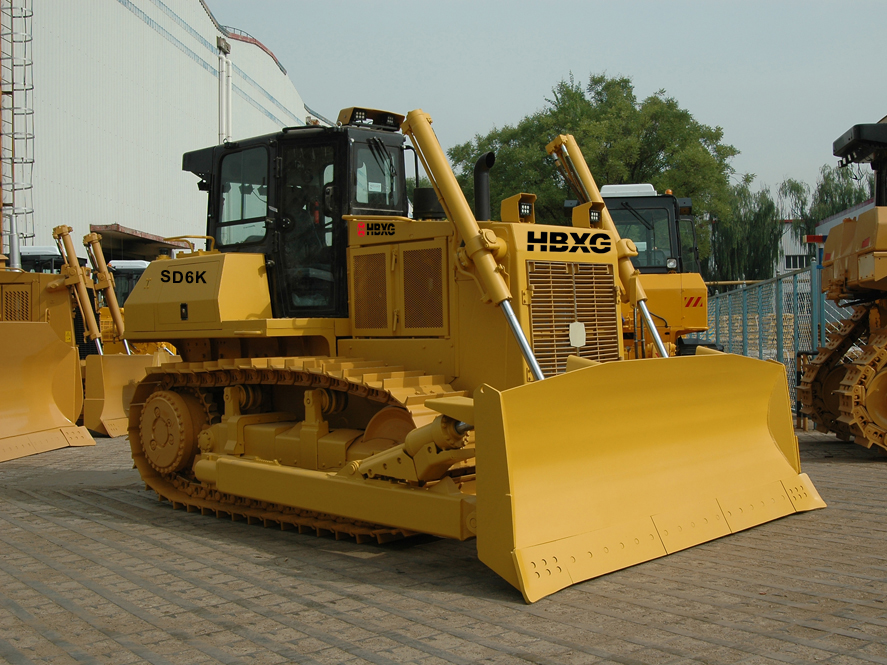

Hydro-static Bulldozer SD6K (170HP)
Product Introduction
SD6K bulldozer is equipped with tire II engine, hydraulic pump and motor, three stages planetary speed reduction, centralize4d cooling system, electric proportion control transmission and pilot hydraulic control. The SD6K bulldozer has strong power, intelligent matching with load change, pivot steering function, flexible operation and high efficiency. The shock absorber sealed cab is with large internal space and good visual field, it is safe and comfortable. SD6K bulldozer is an ideal machine for the construction, harbor and mining purpose.
SPECIFICATIONS
| Dozer | Tilting Blade |
| (not including ripper) Operation weight (Kg) | 17300 |
| Ground pressure(KPa) | 68 |
| Track gauge(mm) | 1880 |
| Gradient | 30°/25° |
| Min. ground clearance (mm) | 400 |
| Dozing capacity (m³) | 4.5 |
| Blade width (mm) | 3479 |
| Max. digging depth (mm) | 498 |
| Overall dimensions (mm) | 5600×3479×3195 |
ENGINE
| Type | WeiChai WD10G190E214 |
| Rated revolution (rpm) | 1900 |
| Flywheel power (KW/HP) | 140/190 |
| Max. torque (N•m/rpm) | 920/1400 |
| Rated fuel consumption(g/KW•h) | 180-190 |
UNDERCARRIAGE SYSTEM
Type |
Pivot connection, balance beam swing, semi-rigid suspension |
Number of track rollers (each side) |
7 |
Pitch (mm) |
203.2 |
Width of shoe (mm) |
560 |
GEAR
| Forward (Km/h) | 0-11 |
| Backward (Km/h) | 0-11 |
IMPLEMENT HYDRAULIC SYSTEM
| Max. system pressure (MPa) | 15.5 |
| Pump type | High pressure gears pump |
| System output（L/min） | 171/20.6 |
| Pilot hydraulic control | |
DRIVING SYSTEM
Dual-circuits electronic control hydrostatic system
Wet type multi-disc brake
Modularize One-stage planetary+One-stage spur reduction gear mechanism
Palm dictate-Electric joystick
Intelligent service system
product description
Introducing the Hydro-static Bulldozer SD6K (170HP) – a powerhouse of innovation and efficiency designed to meet the rigorous demands of modern construction and earthmoving projects. This state-of-the-art bulldozer is engineered to deliver unparalleled performance, reliability, and ease of operation, making it an indispensable asset for any heavy-duty task.
At the heart of the SD6K is the robust Tire II engine, renowned for its exceptional power and fuel efficiency. This engine ensures that the bulldozer can tackle the toughest terrains and heaviest loads with ease, while also minimizing environmental impact through reduced emissions.
The SD6K is equipped with a sophisticated hydraulic pump and motor system, which provides smooth and precise control over the machine's movements. This advanced hydraulic system, combined with the electric proportion control transmission, allows for seamless operation and enhanced maneuverability, ensuring that operators can perform tasks with pinpoint accuracy.
One of the standout features of the SD6K is its three-stage planetary speed reduction mechanism. This innovative design ensures optimal power distribution and torque, enabling the bulldozer to maintain consistent performance even under the most challenging conditions. Whether you're pushing, pulling, or lifting, the SD6K delivers the power you need, when you need it.
To keep the machine running at peak efficiency, the SD6K is equipped with a centralized cooling system. This system effectively manages the temperature of the engine and hydraulic components, preventing overheating and ensuring long-term durability. Operators can rely on the SD6K to perform consistently, even during extended periods of heavy use.
The SD6K also features pilot hydraulic control, which simplifies the operation of the bulldozer and reduces operator fatigue. This intuitive control system allows for precise adjustments and smooth transitions, making it easier for operators to achieve the desired results with minimal effort.
In summary, the Hydro-static Bulldozer SD6K (170HP) is a cutting-edge machine that combines power, precision, and reliability. With its advanced engine, hydraulic systems, and user-friendly controls, the SD6K is the ideal choice for any construction or earthmoving project. Experience the future of bulldozing with the SD6K – where innovation meets performance.
