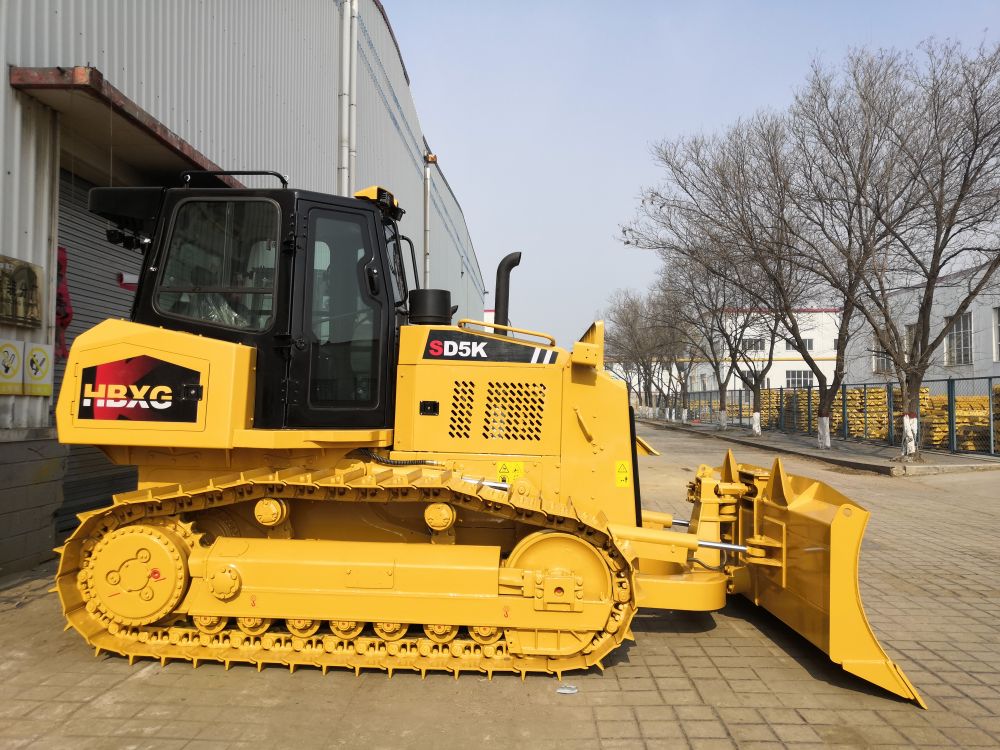

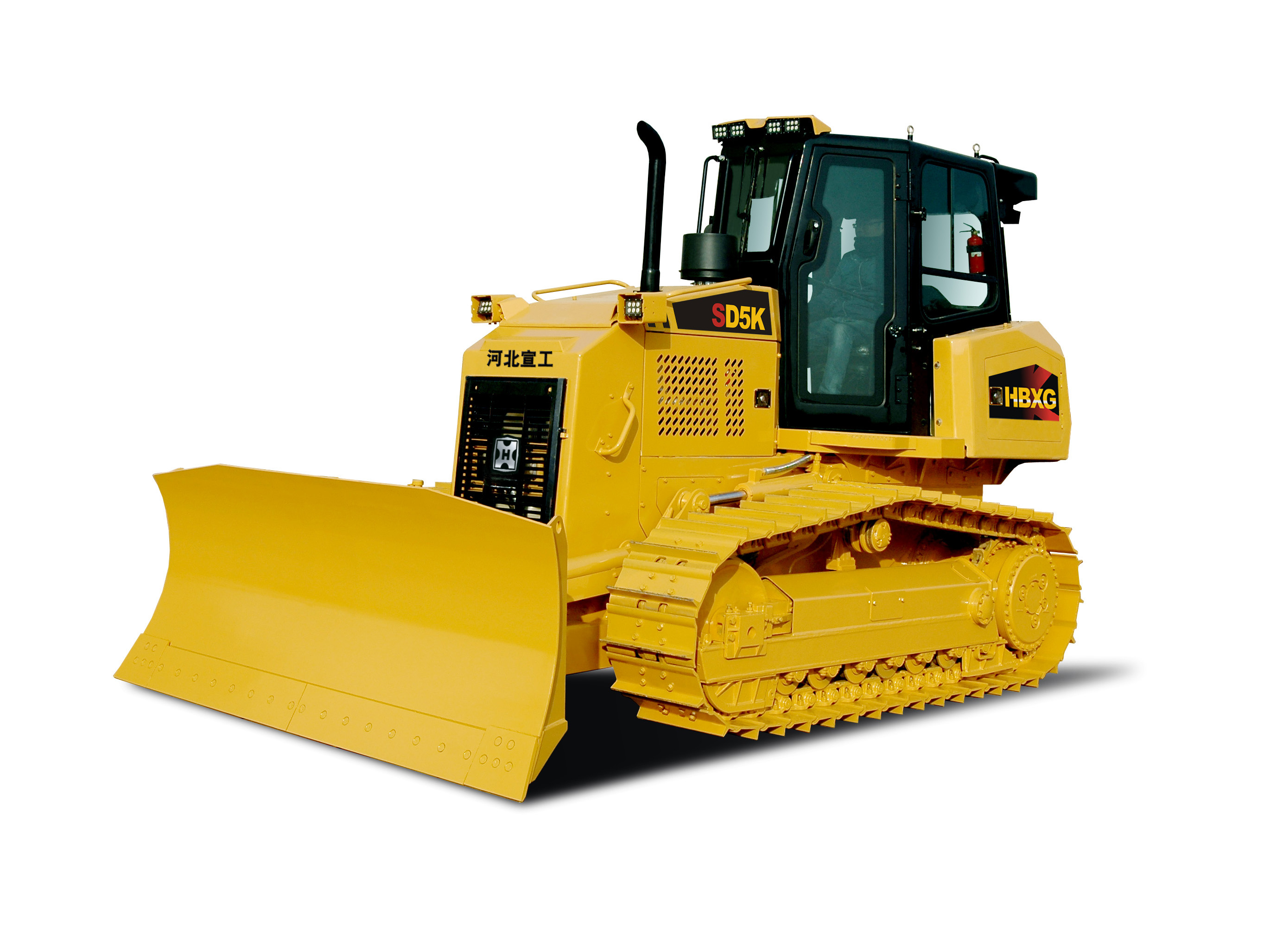

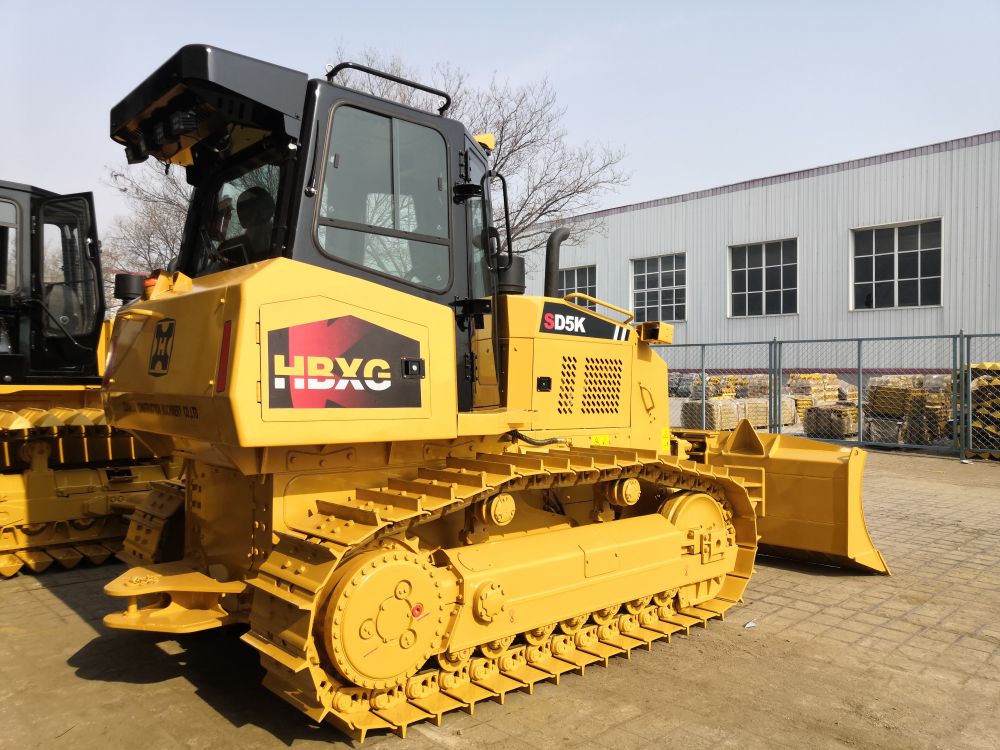

Hydro-static Bulldozer SD5K (130HP)
Product Introduction

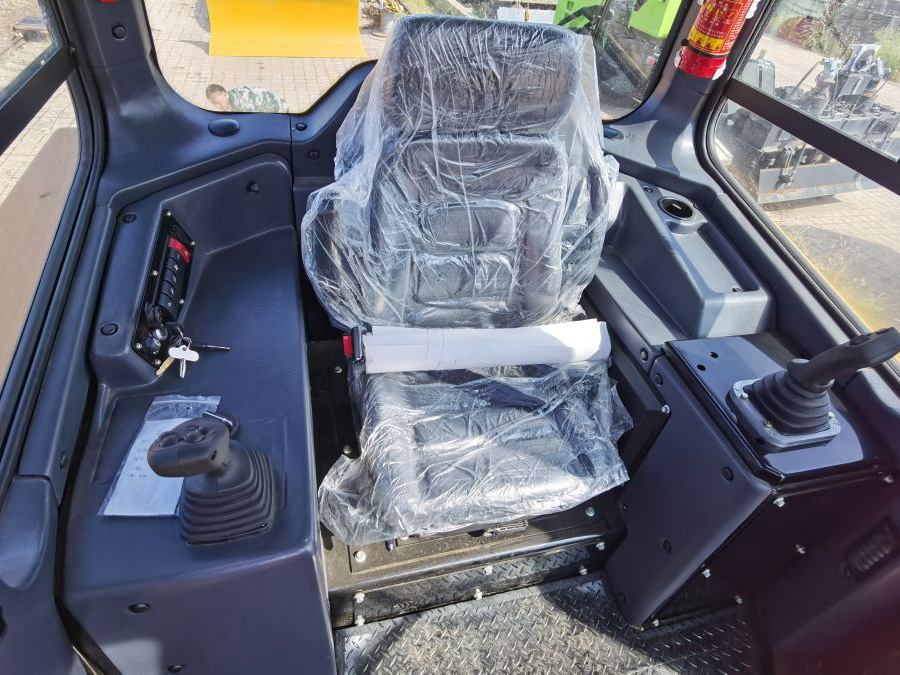

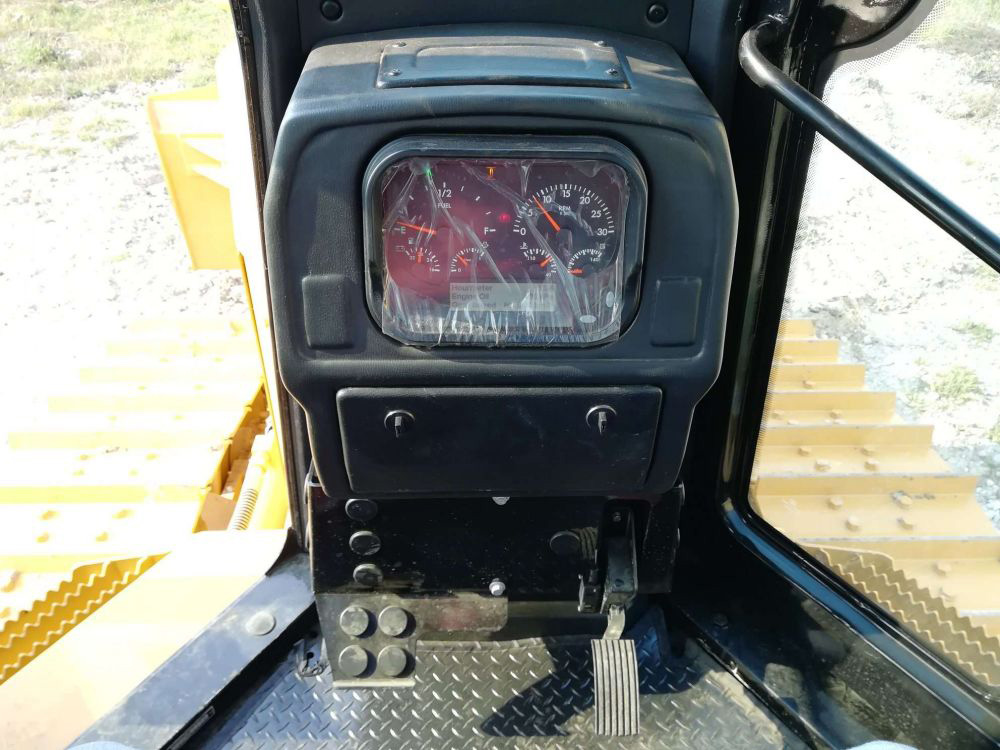

SD5K is the track-type total hydraulic bulldozer with semi-rigid suspended, electronic control tier Ⅲ, dual-circuits electronic control hydrostatic driving system, electric control closed center load sending implement hydraulic system. Power–Angle-Tilting blade, automatic control independent cooling system. This model is equipped with electrical controlled engine of full power matching pattern, with continuously variable transmission and pivot steering function, modular design and easy to repair and maintenance; the electro-hydraulic proportional control walking system and work device make the operating precise and comfortable; Human-computer interaction instrument display, intelligent service system, fully sealed air conditioning cab. It can be equipped with three shanks ripper. It is an ideal machine used in exquisite or heavy load working such as harbor construction, communication construction, stadium, electric power project, city and town earth moving, backfill modeling and leveling working.
SPECIFICATIONS
Dozer |
PAT(Power Angle Tilting Blade) |
(not including ripper) Operation weight (Kg) |
13100 |
Ground pressure(KPa) |
45 |
Track gauge(mm) |
1790 |
Gradient |
30°/25° |
Min. ground clearance (mm) |
315 |
Dozing capacity (m³) |
3.1 |
Blade width (mm) |
3060 |
Max. digging depth (mm) |
460 |
Overall dimensions (mm) |
4922×3060×3000 |
ENGINE
Type |
WeiChai WP6G125E332 |
Rated revolution (rpm) |
2200 |
Flywheel power (KW/HP) |
97/132 |
Max. torque (N•m/rpm) |
570/1450 |
Rated fuel consumption(g/KW•h) |
≤190 |
UNDERCARRIAGE SYSTEM
Type |
Normal track type semi-suspended |
Number of track rollers (each side) |
7 |
Number of carrier rollers (each side) |
1 |
Pitch (mm) |
190 |
Width of shoe (mm) |
510 |
GEAR
Forward (Km/h) |
0-10.5 |
Backward (Km/h) |
0-10.5 |
IMPLEMENT HYDRAULIC SYSTEM
Max. system pressure (MPa) | 19 |
Pump type | Variable displacement piston pump |
System output(L/min) | 125 |
DRIVING SYSTEM
Dual-circuits electronic control hydrostatic system
Wet type multi-disc brake
Modularize One-stage planetary+One-stage spur reduction gear mechanism
Palm dictate-Electric joystick
Intelligent service system
