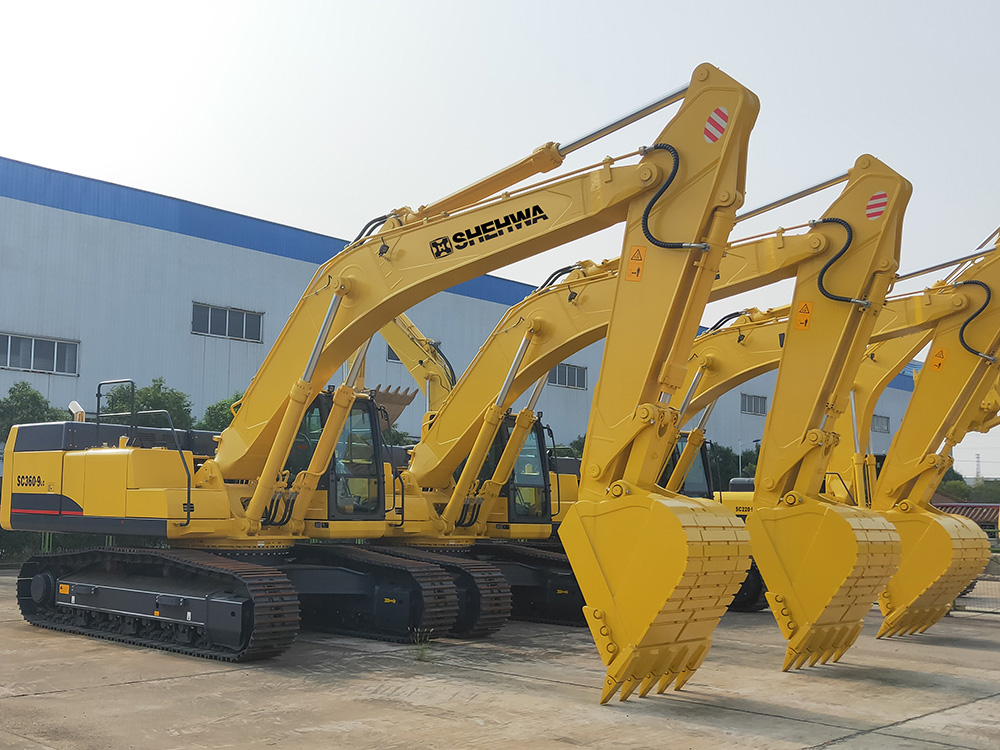

SHEHWA-SC360.9 Excavator
PRIMARY CONFIGURATION
1. Engine: CumminsQSC8.3-194KW（ISUZU ENGINE212KW）
2. Main valve: UN32 TOSHIBA JAPAN
3. Main Pump: K5V160DTH1X4R-9N4A-9V KAWASAKI JAPAN
4. Swing Motor: MA180W01 KAWASAKI
5. Travel motor: TM70VC-B-195 DOOSAN
6. Luxury Cabin
MAIN FEATURES
Cummins engine meets the requirements of emission, strong power, high efficiency and environmental protection.
Imported hydraulic system, full power negative flow control, good compound action, fast rotation speed, high operating efficiency.
Four hydraulic oil cleaning protection line, Nas7 grade filtration accuracy, ensure the long and reliable hydraulic components.
Domestic famous brand front and rear axle, four wheel brakes, comfortable operation, extraordinary enjoyment.
Well-designed welded structural parts, large boring machine after welding processing, with high precision; Shot blasting stress removal, long-term durability.
MAIN SPECIFICATIONS
Model |
SC360.9（Cummins） |
weight T |
34.8 |
Bucket capacity m3 |
1.6 |
Engine type |
CumminsQSC8.3 |
Power |
194/2200 |
Fuel tank capacity |
650 |
Walking speed |
4/6.2 |
Rotary speed |
8.2 |
Climbing ability |
70 |
ISO Digging force ISO |
245 |
ISO Arm digging force |
185 |
Ground pressure |
70.8 |
Traction |
247.8 |
Hydraulic pump Model(KAWASAKY) |
K5V160DTH1X4R-9N4A-9V |
Max flow |
330*2+30 |
Working pressure |
31.5 |
Tank capacity |
310 |
Overall length |
11080 |
Overall width |
3190 |
Overall height(boom top) |
3180 |
Overall heitht(cab top) |
3280 |
Counterweight ground clearance |
1210 |
Min ground clearance |
498 |
Tail radius |
3420 |
Track ground length |
3700 |
Track length |
4622 |
Gauge |
2590 |
Track width |
3190 |
Track shoe width |
600 |
Width of the turntable |
2995 |
Max digging height |
10200 |
Max dump height |
7135 |
Max digging depth |
7370 |
Max digging depth of vertical wall |
6380 |
Max excavation distance |
11100 |
Max digging distance in the ground plane |
10910 |
Min radius |
4265 |
The distance from the centerof of rotation to the back end |
3420 |
Caterpillar tooth Thickness |
30 |
Height of balancing |
2265 |
Length ground when transported |
5720 |
Arm length |
3185 |
Boom length |
6470 |
Max lifting height of bulldozer |
|
Max depth of bulldozer |
|
Max buoyancy |
|
